TEXI TRONIC 5F PREMIUM EX
Automatic single needle lockstitch machine TEXI TRONIC 5F, light and medium fabrics
Industrielles Nähen › 1-Nadel Flachbett Steppstichmaschinen
Beschreibung:
Modern single needle lockstitch machine with full automation
Texi TRONIC 5F is a lockstitch machine for light and medium fabrics, equipped with advanced automation – automatic thread trimming, bartacking and presser foot lifting. Perfect for efficient production where time saving is essential.
Technical specifications
The machine sews at a speed up to 5000 stitches/min, with maximum stitch length of 5 mm. Equipped with a standard 21 mm hook and bottom feed. Central (open) lubrication system ensures proper oiling. Integrated AC Servo motor guarantees quiet, vibration-free work. LED lamp precisely illuminates the working area.
Main features
- Max. sewing speed: 5000 stitches/min
- Max. stitch length: 5 mm
- Automatic thread trimming, bartacking and presser foot lifting
- Automatic needle positioning
- Bottom feed
- 21 mm hook (standard)
- LED lamp precisely illuminating the working area
- Built-in AC Servo motor – quiet operation, no vibrations
Ready to work

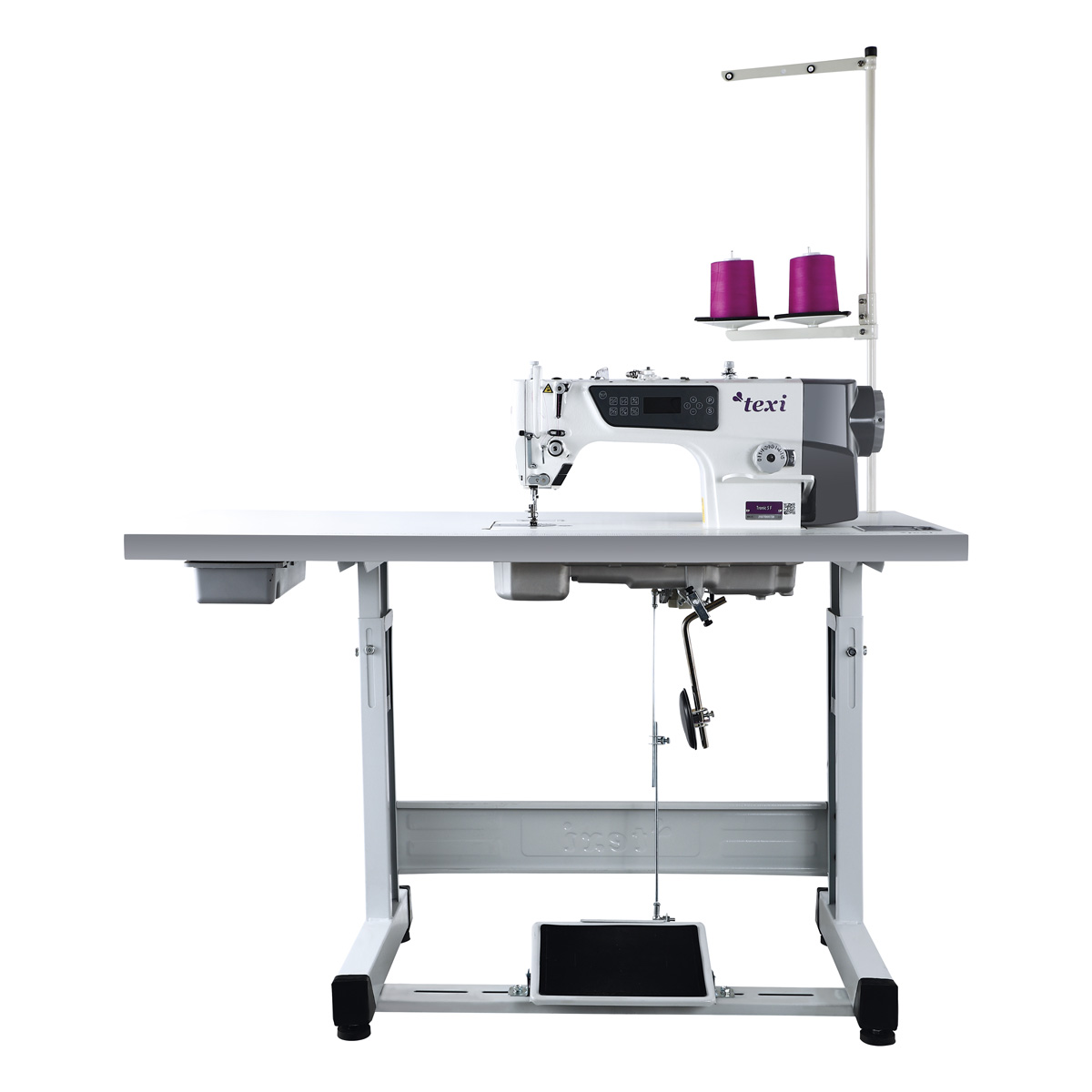

Delivered complete with head, table, stand and drive. Fully operational after setup.
Recommended needle system
Texi TRONIC 5F uses needle system 135x5.
Warranty
The machine comes with a 24-month warranty.
Technische Spezifikation:
| Type of sewing material | light |
| Type of feed | bottom |
| Automatischer Fadenabschneider | Ja |
| Automatische Nadelpositionierung | Ja |
| Automatische Fußlüftung | Ja |
| Automatischer Rigel | Ja |
| Schmiersystem | zentral |
| LED-Beleuchtung des Arbeitsfeldes | Ja |
| Fußlüftung: | 13 mm |
| Max. Stichlänge: | 5.0 mm |
| Max. Nähgeschwindigkeit: | 5000 Stiche/Min. |
| Integrierter Motor: | Ja |
| Nadelsystem: | 135X5 |
Downlowad:
| Handouts |
| TEXI TRONIC 5F MANUAL.pdf |
